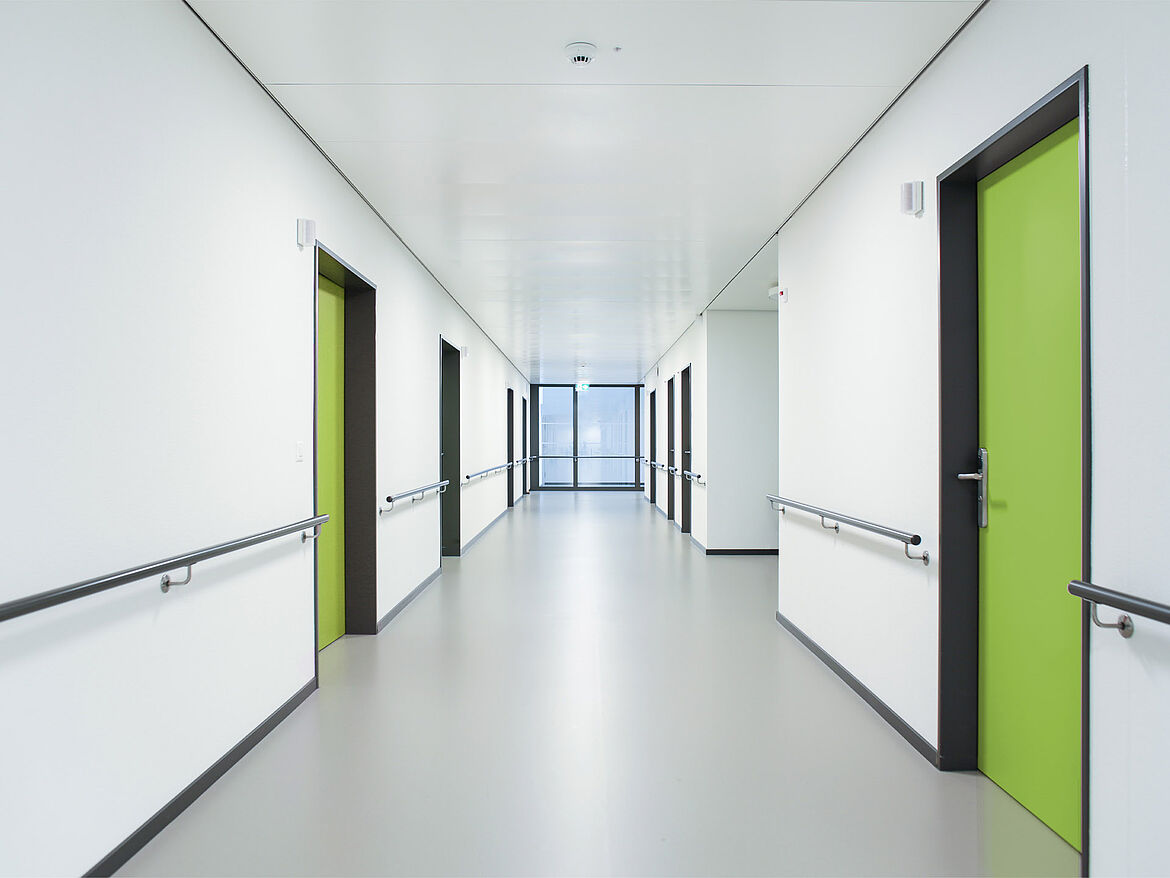

The self-supporting fire protection ceiling dur-F30/EI30 S300 EASY-CLICK is a metal ceiling with 30 minutes of fire resistance that was designed for use in hallway areas. The fire protection panels can be folded down in seconds without tools using our Easy-Click mechanism and can be moved within the support profile.
The ceiling system has been tested in accordance with DIN 4102-2 (F30) and EN 13501-2 (EI30) and is approved in Switzerland by the Association of Cantonal Fire Insurers (VKF Nr. 30886):
- a → b: Protection of the escape route or fire protection closure of the ceiling cavity from the corridor in the event of a fire from above, with and without fixtures.
- b ← a: Protection of the infrastructure in the ceiling cavity in the event of a fire from below, without fixtures.

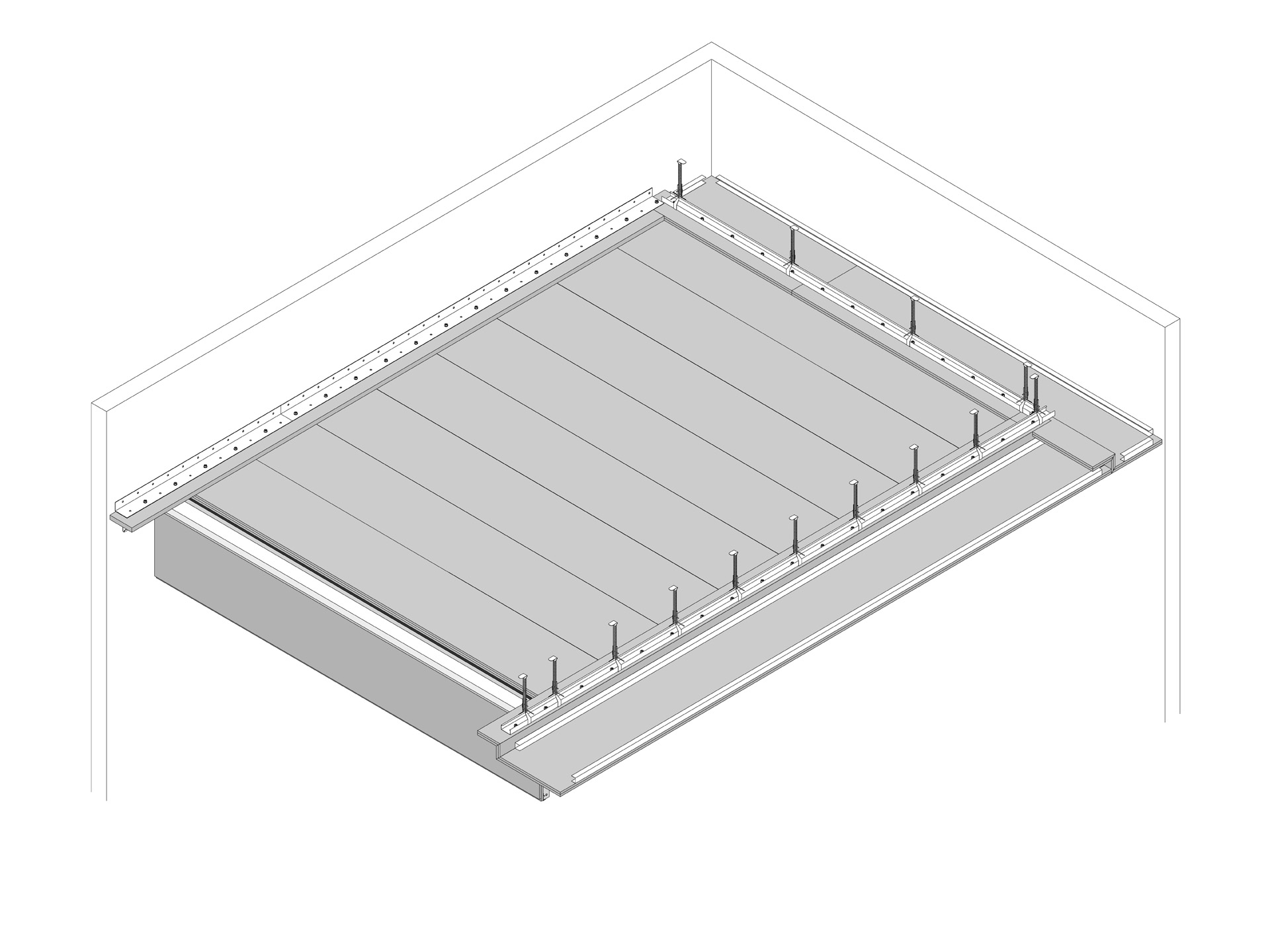

dur-F30/EI30 S300 EASY-CLICK fire-resistant ceiling
Dimensions
Length: 500-2500mm
Width: 200-400mm (Standard 400mm)
Material and surface
0.7 mm thick galvanised sheet steel.
Standard powder coating, white (RAL 9016 matt or RAL 9010). Other powder coatings are possible.
Acoustics and perforation
Perforation is possible up to a free cross-section of 32.7%. Standard perforation: RG-L08, RG-L15, RG-L29, RD-L30, RD-L33. Other perforations are possible.
As standard, sound absorption with black durlum acoustic fleece (αw=0.35), optional mineral wool lining (αw=0.75).
Printing
Powder-coated cut sections, also printable with motifs and textures.
Fire behaviour
F30 and EI30 from above and below in accordance with DIN 4102-2 (F30) and EN 13501-2 (EI30).
